AT7200-R using advanced fuel cell sensor, to provide fast screening of alcohol concentration in people’s breath. No need of mouthpiece, quite save time and cost. Mainly used in mine industry, transportation industry, etc.

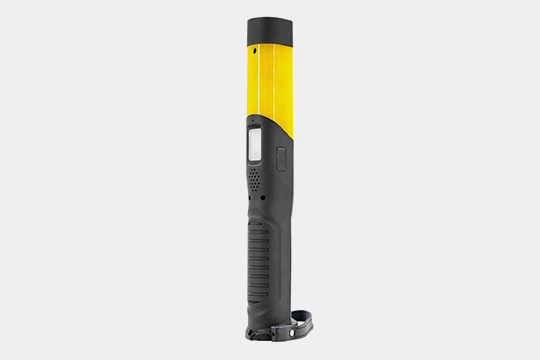

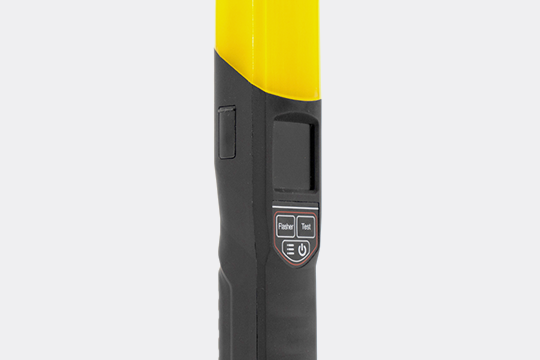

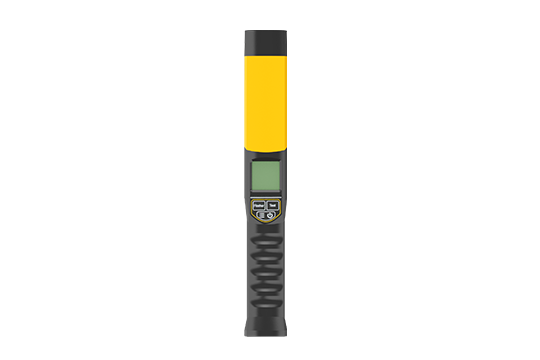

AT7200-R Rapid Screening Breathalyzer
Description
Features
Fuel Cell sensor, Active Test
LCD Color 128 x 128 Matrix Display
32-bit MCU
Test Result Printed and Uploading to Computer
Traffic Baton with White and Red Lighting Indication
Real Time and Temperature Indication
Under Voltage Remind
Choice of Units-mg/l, mg/100ml, %BAC, ‰BAC, g/l
Fast Warming Up, Response and Recovery
No Mouthpiece Needed, Environmental and Hygiene Friendly
Application
Mainly used in mine industry, transportation industry, etc.
Specifications
| Model | AT7200-R |
| Sensor | Platinum Fuel Cell |
| Measuring range | 0～2.000mg/L |
| Consecutive Working | Around 2000 times |
| Dimension | 293mm*413mm*407mm(L*W*H) |
| Weight | 600g |
| Calibration | 180 days |
| Response time | Less 1 second |
| Preheating time | Within 10 seconds |
| Power | Rechargeable lithium battery |
