AT200 is a breath alcohol tester implemented in advanced flat surfaced semiconductor technology, featuring good sensitivity and repeatability, low voltage remind, LED display, simply to operate, compact design and medium size which is conveniently to carry, audible and visible alarm indication when test result is beyond the preset threshold.

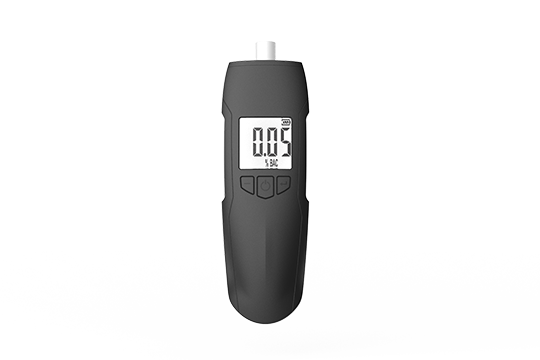

AT200 Breath Alcohol Tester
Description
Features
Advanced flat-surfaced semiconductor ethanol sensor
Quick response, good accuracy, sensor fault self-checking
SMD assembling, MCU control, stable performance
Power saving design, low voltage remind
Customizable alarming threshold to match local regulations
Visible and audible alarming indication to visible
Switchable test units among mg/I, g/l, %BAC, ‰BAC, mg/100ml to suit for different countries
Application
Car, hotel, home, workshop, office, etc.
Specifications
| Sensor | Semiconductor |
| Test Range | 0-0.20%BAC, 0-2g/l, 0-200mg/100ml,with K=2000 |
| Resolution | 0.01%BAC,with 2 Decimals |
| Warm Up | About 40s |
| Operation Condition |
Temperature：-10℃～40℃ Humidity：≤93% |
| Display | White LED |
| Battery | Alkaline AAA Battery, 3 pieces |
| Blow Time | 500 Counts with Full Battery Capacity |
| Dimension | 150mm×50mm×34mm |
| Weight | 73g Without Battery |
| Accuracy | ±0.01%BAC at 0.05%BAC |
