SC-odor600 fixed source volatile organic gas online monitoring system consists of flue gas sampler, temperature pressure flow humidity detector, heating cable, analysis cabinet pre-treatment system, auxiliary gas source, gas analyzer, data acquisition and processing, data transmission, etc. SC-odor600 fixed source volatile organic gas online monitoring system, which can continuously monitor the concentration of various organic gases such as total hydrocarbons, methane, non-methane total hydrocarbons, benzene, toluene, xylene, etc. or other gas concentrations of VOCs components. As well as gas temperature, pressure, flow rate, humidity and other related parameters, as well as statistical emission rate, total emission and other parameters, and can effectively manage the acquired data.

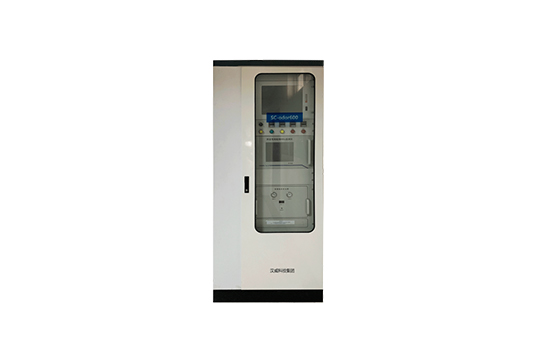

SC-odor600 Fixed Source Volatile Organic Gas Online Monitoring System
Description
Features
Fully consider the sample gas conditions, dew point and other factors, and design the pretreatment system in a targeted manner
Explosion -proof/non-explosion-proof type optional
Highly anti-corrosion design. All parts that come into contact with the sample (for example, piping, valves, pressure regulators, and flow meters)
Special leak-proof design of sealing components
Based on the design concept of anti-corrosion and anti-leakage to ensure long-term reliable continuous operation of the system
Anti -blocking design of sampling system based on automatic high-frequency and high-pressure back flushing method, reducing maintenance
Advanced system technology, stable and reliable, strong applicability
On the basis of meeting environmental protection requirements, it is economical and reasonable
The system design fully considers the characteristics of environmental protection, and can expand the measurement requirements to improve the utilization value of the system
The analysis method is consistent with the standard method, and the GC-FID method is used to detect
Maintenance -free design for continuous operation, automatic cycle operation after startup, true online analysis
Simultaneous online detection of components such as non-methane total hydrocarbons and benzene series
Application
Petrochemical industry
Fine chemical industry
Biopharmaceutical industry
Rubber products industry
Printing and packaging printing industry
Textile printing and dyeing industry
Spray coating workshop
Electronic semiconductor industry
Synthetic /artificial leather industry
Efficiency monitoring of waste gas treatment device
Specifications
| Analytical method | Gas Chromatography, GC+Dual FID |
| Sampling method | Direct extraction + full heat method |
| FID Baseline Noise | Baseline noise ≤ 5×10 -14 A |
| FID baseline drift | ≤ 3×10 -13 A / 30min |
| FID detection limit | ≤ 2.9×10 -12 g/s |
| FID detection limit |
Non-methane total hydrocarbons: 0.05mg/m3 Benzene series: 0.05mg/m3 |
| Range |
Non-methane total hydrocarbons: 0-200mg/m3 Benzene series: 0-40mg/m3 |
| Indication error | ≤ ±2% FS |
| Repeatability bias | ≤ 3% |
| Zero drift | ≤±1% FS |
| Range drift | ≤±2% FS |
| Signal output | 4-20mA, RS232, RS485 |
| Sample pump flow | 5L/min |
| Gas consumption | H2 (30±10)ml/min |
| Air consumption | Air (400±20)ml/min |
| Carrier gas | Nitrogen, more than 99.999% pure |
| Carrier gas consumption | N2 (80±10)ml/min |
| Insulation resistance | Not less than 20MΩ |
