The WQD3100 water quality multi-parameter detector is mainly composed of a controller and a water quality sensor. The device can be connected to a variety of digital or analog sensors, and integrate business, flow and other data. Through the instrument control unit, the water intake time, interval time and measurement delay time can be customized.

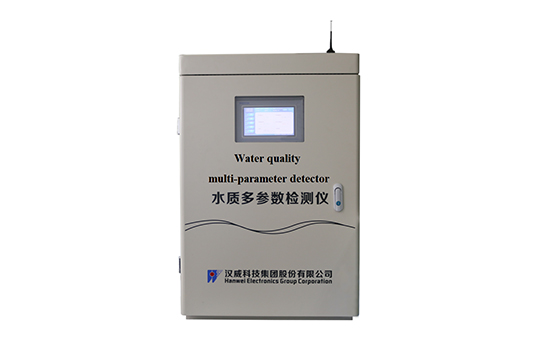

WQD3100 Water Quality Multi-parameter Detector
Description
Features
No need to configure standard solution for detection
Fast and accurate detection
Easy to operate
With automatic water absorption, automatic silt discharge, automatic overflow, automatic cleaning, automatic bacteriostasis, automatic storage and other functions
Application
Water works, Secondary water supply for residential areas
Specifications
| Control display unit | touch screen |
| Communication interface | RS485, USB |
| Power supply | Rated voltage AC220V±10% Frequency 50±1%Hz |
| Working | Temperature 0℃～45℃, Humidity ≤90%(no condensation) |
| Types of detection | pH, Temperature, Conductivity, Dissolved Oxygen, Free |
| Dimensions | 560mm × 380mm ×850mm |
| Measureme | Range | Resolution | Accuracy |
| pH | 0-14 | 0.01 | ±0.1 |
| Temperature | 0- 50 ℃ | 0.1℃ | ±1℃ |
| Conductivit | 0-2000μS/cm | ±1% | ±3%FS |
| Dissolved | 0-20mg/L | 0.01mg/L | ±3%FS |
| Residual | 0-20mg/L | 0.01mg/L | ±3%FS |
| Turbidity | 0-10 NTU | 0.01 | ± 5 %FS |
