CXE combustible gas detector is mainly used in small restaurants, shopping malls, underground integrated pipe corridors and other environments where gas may leak. When the gas concentration in the environment exceeds the preset alarming value, the indicator will give an alarm. At the same time, it can output signals and drive valves and other equipment to protect the user's personal and property safety.

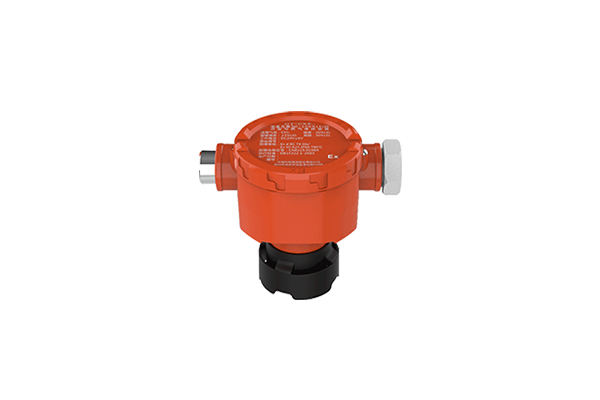

CXE Fixed Gas Detector
Description
Features
Compact design
Low power consumption
Stable transmission
Cost-effective
Application
Applicable to 9 small places such as industrial and commercial small restaurants, snack bars, barber shops, bathrooms, small hospitals, shopping malls etc.
Specifications
Sensor type | Catalytic sensor |
Power | DC24V±6V |
Electrical output | RS485 Power BUS |
Operating temperature | -40~70℃ |
Closure material | Aluminum alloy |
Relay capacity | 3A@DC30V or 3A@AC250V |
Ingress protection | IP66 |
Cable entry | NPT1/2 |
Dimensions | 95mm x 106mm x 76.5mm |
Ex grade | Ex d ⅡC T6 Gb / Ex tD A21 IP66 T80℃ |
State indication | Yellow-Fault, Red-Alarm, Green-Power |
Extendable functions |
Wireless: GPRS / NB-IoT Temperature and humidity collection function |
