GTYQ-WD6200IRII Fixed Gas Detector is designed for detecting flammable gas. It features a double beam IR sensor that effectively reduce the zero drift to the minimum, and extends the maintenance intervals. The detector enjoys better gas selectivity, stability, longer life span, and wider application over detector with regular IR sensor. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog communication.

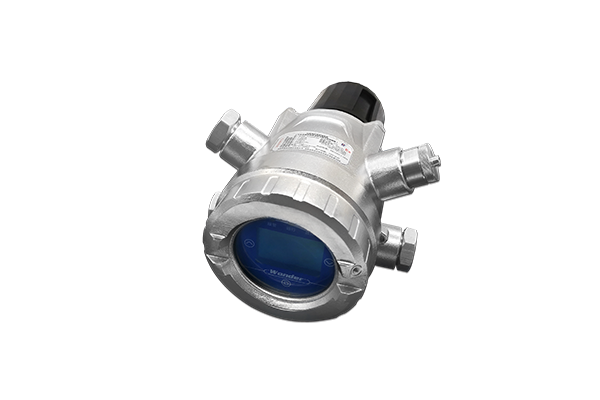

GTYQ-WD6200IRII Fixed Gas Detector
Description
Features
Double beam infrared technology, good stability
High accuracy, longer lifespan
4-20mA / Hart signal output
2 relay output for gas leak alarm and fault alert
LCD display, easy to read
Calibration indication and overdue indication
Magnetic bar and IR remote for setting, easy operation
Special installation accessories, easy installation
Smart sensor module design, easy maintenance
Sensor with heating function, excellent moisture and heat resistance
Optional Bluetooth communications function
Support remote upgrade
Application
Petroleum and petrochemical industry refineries, LPG/LNG tanking plants, gas energy industry, gas plants, offshore oil/gas platforms, etc.
Specifications
| Measuring gas | CH4, C3H8, C4H10 |
| Measuring range | 0-100%LEL |
| Measuring accuracy | ±3%LEL |
| Sensor life | ≥5 years |
| Measuring type | Diffuse naturally |
| Response time | ≤30s |
| Signal output | 4-20mA / Hart |
| Alarm output signal | 2 programmable relays |
| Cable / distance | 1.5 MM2, 3 wire, shielded,1000m (maximum) |
| Conduit connection | NPT3/4 |
| Mounting type | Wall mounted |
| Working temperature | -40℃～+70℃ |
| Working humidity | ≤95%RH (no condensation) |
| Operation voltage | DC24V±25% |
| Consumption | ≤6.5W |
| Ingress Protection | IP66 / IP67 |
| Explosive proof | Ex d IIC T6 Gb |
| Housing material | 316L |
| Dimension and weight | 243×158×127mm, about 5.2kg |
