KB180 gas alarm control panel is used to monitor the fixed gas detectors (4-20mA type) and can give audible & visual alarming signals to inform the end user of the on-site hazards. When the measured gas concentration reaches or exceeds the set value, the panel will send out sound and light alarm signals, output relevant control signals, and start the corresponding control devices, thereby avoiding the occurrence of major accidents.

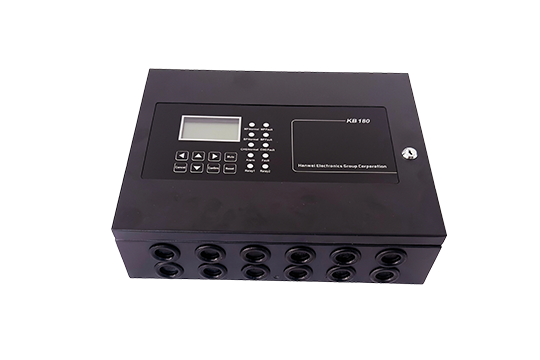

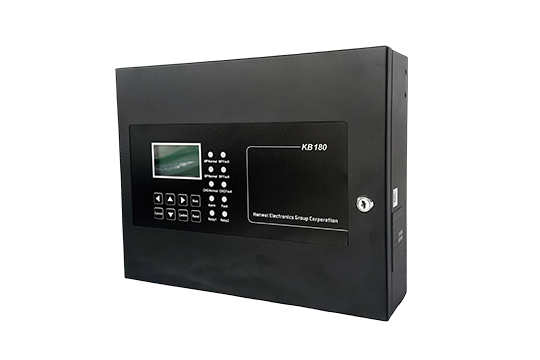

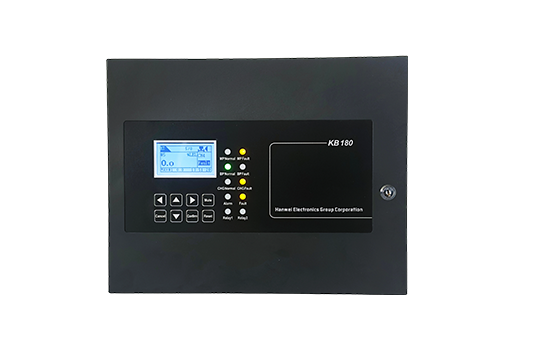

KB180 Gas Alarm Control Panel
Description
Features
Compact and light weight design
LCD man-machine interface, status indication is clearly visible
Audible and visual alarm signals
Programmable channel design for different gas
Backup battery included to ensure continuous working
Suitable for safe area use
Application
For industrial and commercial gas monitoring
Specifications
| Power supply |
Main: AC187V～AC253V, 50Hz±5Hz Backup: DC20V～DC27V |
| Consumption | ≤10W (gas detectors excluded) |
| Output voltage | DC20V～DC28V |
| Detector quantity | 8pcs of 4-20mA detectors |
| Data upload | RS485 (supports Modbus) |
| Relay output | 2 dry relays (Max voltage is AC220V) |
| Relay capacity | ≤3A |
| Pulse valve output | DC24V solenoid valve (DN50 or smaller) |
| Working temp | 0℃～40℃ |
| Relative humidity | ≤95%RH |
| Display & indication | LCD screen and indicators |
| Alarm method | Audible (65dB to 100dB @1m), visual |
| Dimension | 280mm×220mm×76mm |
| Weight | ≤5kg |
