By adopting gas chromatography (GC) separation principle and sensor technology, EGC200 can easily distinguish biogas and natural gas at the gas inspection site, which saves construction time and avoids waste caused by wrong excavation. It can be used in all aspects of daily maintenance of gas pipeline network.

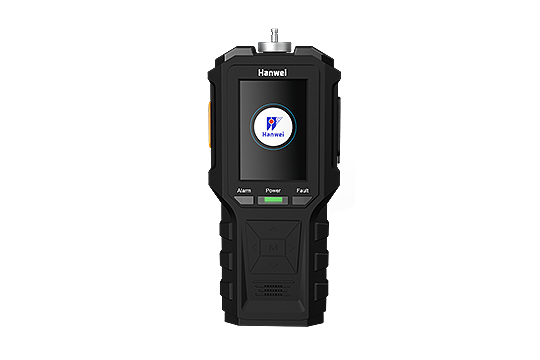

EGC200 Ethane Identifier
Description
Features
With self-patented miniature chromatography column, it’s more accurate and faster to identify the Ethane gas
Extendable to IR sensor, full-range detection is possible
Big-flow pump sampling to realize intelligent self-adjustment
Multi-stage filtration, suitable for complex environment using
Compact handheld design, no carrier gas required
Audible and visual alarming signals
High-brightness color screen display, convenient operation
Explosive proof and IP65 design
Application
To identify the components of the leaked gas on site and help inspectors to distinguish between natural gas and biogas.
Specifications
| Measuring gas | Methane, Ethane (Propane) |
| Detection range (Methane) |
0-10000ppm, accuracy: ±1ppm
0-100%LEL, accuracy: ±1%LEL
0-100%VOL, accuracy: ±3%VOL
|
| Response time | T90<12s |
| Identifying time | <180s |
| Ethane resolution | 10ppm |
| Working temperature | –20 to +50°C |
| Humidity | 0-90%RH (no condensation) |
| Air pressure | 800-1200kPa |
| Power source | 3.7V, 6600mAH Li-ion battery |
| Working time |
Battery: >8h (full charger @ 25°C)
Built-in pump: >10,000h
|
| Ingress protection | IP65 |
