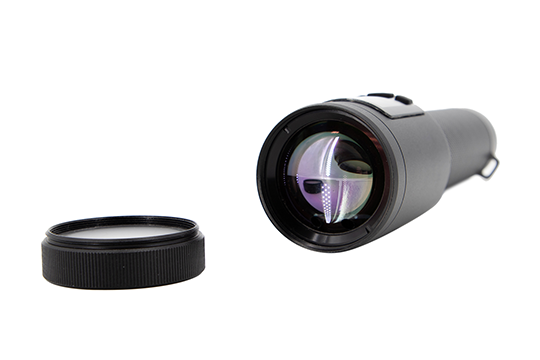

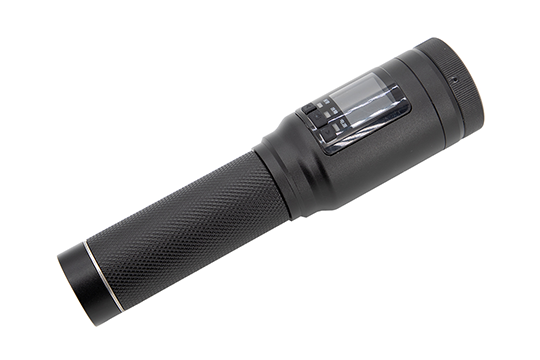

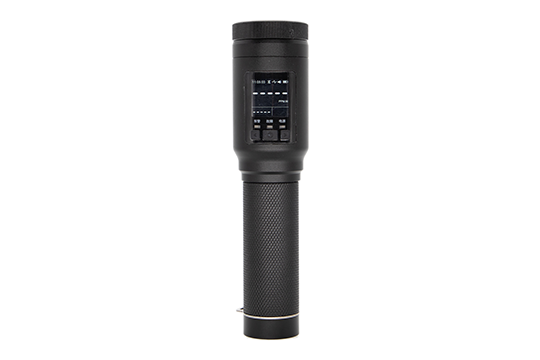

HRLD200 Handheld Laser Detector

HRLD200 handheld laser Methane detector adopts the most advanced TDLAS technology, which will realize non-contact and remote detection for the places where the inspector cannot reach. The leakage point and source can be located and found accurately and quickly, then to improve the work efficiency and reduce labor intensity.

Remote detection, maximum distance is 50 meters

Small size and light-weight easy to carry

Good selectivity, response to Methane only

One-button operation

Sensitivity of 5ppm·m

Fast response, no alarm delay

Color LCD display

Optional display detector of ppm·m, LEL·m and VOL·m

Shock proof design

Visual, audible and vibration alarm

Adjustable alarming level between 0-9999ppm·m

Self -test function

Low battery warning

Low consumption, can be used for continuous testing

Intrinsically safe design

The TDLAS sensor has high sensitivity, quick response and good selectivity, that only response to Methane only while not to other hydrocarbons gas and result in false alarm. It is widely used in the industries of municipal gas pipeline, oil refineries, chemical plants in petroleum and petrochemical industry, metallurgical industry, power industry or any place that is possible to have gas leakage.
