JL269 is an industrial type portable gas leakage detector with simple operation, fast response and wide measuring range. With flexible goose-neck, it is easy to use and carry. It is specially made to measure the leakage of natural gas, LPG, H2 etc. combustible gases.

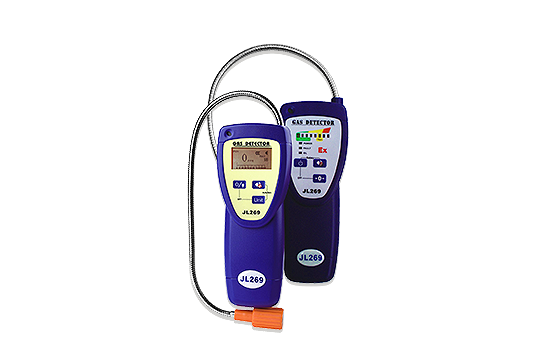

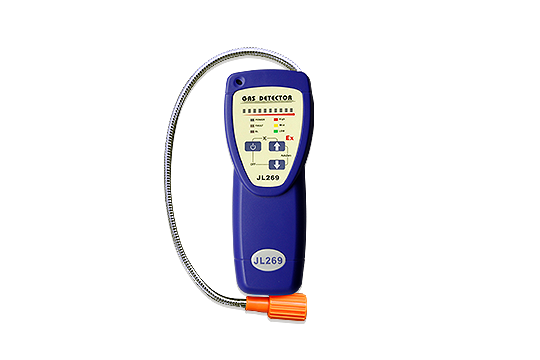

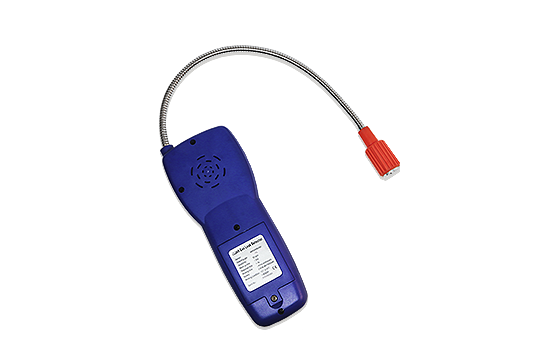

JL269 Portable Gas Leak Detector
Description
Features
Fast response and resume
Flexible goose-neck
Battery low voltage alert
Sensor fault detection
Automatic zero calibration
Application
Daily inspection and maintenance of the gas pipelines by the gas companies
Specifications
| Measuring gas | Natural gas (CH4), LPG (C3H8), H2 |
| Measuring range | CH4: 0-30000ppm C3H8: 0-20000ppm H2: 10000ppm |
| Sensor type | Semi-conduct sensor |
| Sensor life | 2 years |
| Sensitivity | Better than 50ppm |
| Measuring type | Diffusion naturally |
| Response type | T90<5S |
| Battery | DC3.7V 2200mAh Lithium-ion battery |
| Working time | ≥8 hours continuously |
| Working temperature | -10℃~55℃ |
| Humidity | <93%R.H.(no dews) |
| Housing | Rubber enclosure |
| Dimension | 180mm*72mm*35.5mm |
| Weight | About 300g |
