BX616 is a united gas detector measuring four (4) major gases, which result the most of the industrial accidents, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously four gases O2, CO, H2S and combustible gas (CH4), and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative).

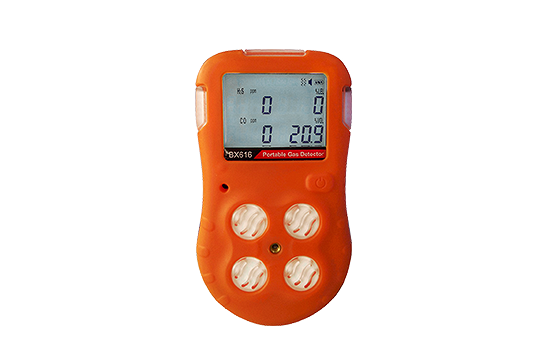

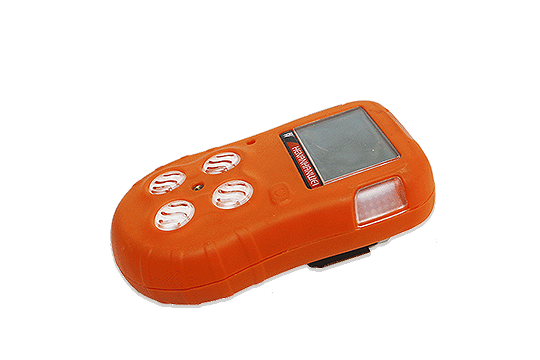

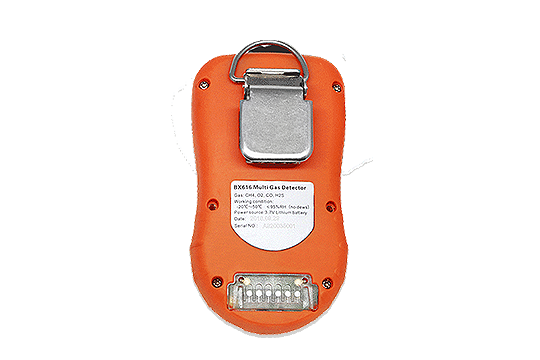

BX616 Portable Multi-gas Detector
Description
Features
Small size and light-weight
Simple operation with only 1 button
Adjustable alarm levels and span calibration value
STEL and TWA alarm for toxic gases
Self protection for combustible gas sensor against high concentration
Battery low voltage alert
Confidence beep
Self-test after power on
Self-diagonstic and self-correction function
Application
Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works, confined spaces etc.
Specifications
| Measuring gas | O2 | CO | H2S | Combustible |
| Measuring range | 0-25%VOL | 0-500ppm | 0-100ppm | 0-100%LEL |
| Sensor type | Electrochemical | Electrochemical | Electrochemical | Catalytic |
| Measuring type | Diffuse naturally | |||
| Response time | T90<30s | |||
| Display | LCD screen | |||
| Audible | ≥85dB at 1m | |||
| Alarm method | Visual, audible and vibrative signals | |||
| Battery | DC3.7V 1800mAh Lithium battery | |||
| Operating time | ≥8h per charge (Charging time: 4-6h) | |||
| Event log | 100,000 events | |||
| Working temperature | Toxic gases: -20℃～50℃ Combustible: -40℃～70℃ | |||
| Working humidity | <95%RH (no condensation) | |||
| Housing | Rubber enclosure | |||
| Standard accessories | Operation manual, calibration cap, charger, screwdriver | |||
| Dimension & weight | 120×68×30mm, about 220g | |||
| Ex grade | II 2G Ex ia IIC T4 Ga or II 2G Ex db ia IIC T4 Gb | |||
| Ingress protection | IP66 | |||
