E4000 is a united gas detector measuring maximum four (4) gases, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously maximum four gases of combustible gas, O2 and toxic gases, and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative). By adopting interchangeable smart sensor module, it can be made for detecting 2 gases, 3 gases and 4 gases.

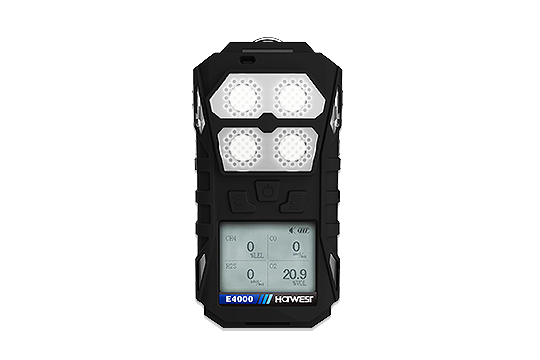

E4000 Portable Multi-gas Detector
Description
Features
Interchangeable smart sensor module
Intrinsically safe
MOS, catalytic, electrochemical, infrared, PID sensors selectable
Built-in sampling pump (optional)
Visual, audible and vibrative alarm
Adjustable alarm levels and span calibration value
STEL and TWA alarm for toxic gases
Password management
Real-time clock
Self-test after power on
Self-diagonstic and self-correction function
GPS, GPRS and man down function (optional)
Application
Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works, confined spaces etc.
Specifications
| Measuring gas | O2 | CO | H2S | Combustible |
| Measuring range | 0-25%VOL | 0-500ppm | 0-100ppm | 0-100%LEL |
| Sensor type | Electrochemical | Electrochemical | Electrochemical | Catalytic |
| Measuring type | Diffuse naturally (pump sampling if pump is selected) | |||
| Response time | T90<30s | |||
| Display | LCD screen | |||
| Audible | ≥85dB at 1m | |||
| Alarm method | Visual, audible and vibrative signals | |||
| Battery | DC3.7V 2200mAh Lithium battery | |||
| Operating time | ≥8h | |||
| Event log | 100,000 events | |||
| Working temperature | Toxic gases: -20℃～50℃ Combustible: -40℃～70℃ | |||
| Working humidity | <95%RH (no condensation) | |||
| Housing | Rubber enclosure | |||
| Standard accessories | Operation manual, calibration cap, charger, screwdriver, USB cable | |||
| Dimension & weight | 147×76×37mm, about 350g | |||
| Ex grade | Ex ia IIC T4 Gb | |||
| Ingress protection | IP66 | |||
