E410 / E410P is mainly used in the fields of petroleum, petrochemical, chemical, food, pharmaceutical, emergency rescue, etc. It can achieve the simultaneous detection of 1-5 gases. The product supports Bluetooth (optional) and 4G (optional) wireless functions, and remote monitoring provides stronger security for on-site workers. Adopting 2 different sampling methods (natural diffusion and built-in pump suction), it can meet customers' different scenario requirements such as daily inspections and confined spaces.

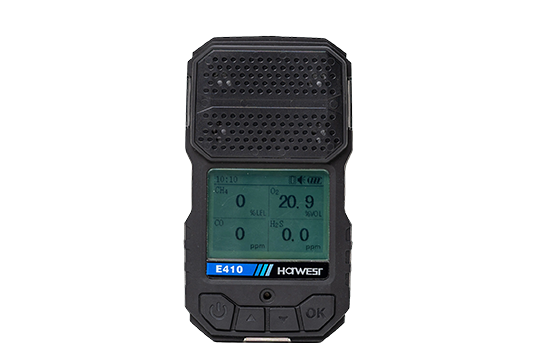

E410 Series Portable Multi Gas Detector
Description
Features
Compact and lightweight in size:
The product is sturdy and durable, with a size only 4/5 of the size of the iPhone 15, suitable for one handed grip operation
One-click shortcut operation:
Support one click mute, one click pump on/off (E410P), convenient operation effectively improves work efficiency
Multiple detection principles:
Support various sensors such as infrared, electrochemical and PID, which can meet more than 10 gas detection needs
Long-life O2 sensor:
Support O2 sensor with a service life of 5 years, effectively reducing the risk of leakage
Up to 5-gas detection:
Supports dual-sensor (CO and H2S), which can meet customers' needs for simultaneously detecting five types of gases
Multiple wireless signal:
Support Bluetooth / 4G networking mode, paired with a mobile app for convenient remote real-time monitoring
Large LCD screen display:
Equipped with a 2.5-inch LCD screen with built-in high brightness backlight for more intuitive information display
Easy to operate and learn:
4- button design and simple and easy to learn interactive logic enable users to operate in a "foolproof" manner beyond the user manual
Long endurance working time:
Large capacity lithium batteries meet the requirements of long endurance work, with E410 endurance time ≥ 14h and E410P ≥ 12h
Advanced temperature compensation algorithm:
When the temperature of the sensor changes, it can automatically compensate and improve the accuracy and reliability of gas detection
Application
Petroleum and Petrochemicals
Emergency rescue
Offshore platform
Pharmaceutical and Chemical Industry
Industrial waste gas
Incineration power generation
Specifications
| Sampling method | Diffusion type E410 / Pumped type E410P |
| Detection principle | Infrared, electrochemical, PID etc. |
| Sensor channel | 4 |
| Working time (full charge) | E410≥14h, E410P≥12h |
| Explosive proof | Ex ib IIC T4 Gb / Ex ib IIIC T130℃ Db |
| Ingress protection | E410: IP67, E410P:IP66 |
| Indication method |
LCD displays real-time data and detector status Visual / audible / vibrative alarming signals for gas leakage, low battery voltage, over range, sensor fault etc. |
| Dimension | 122.5（H）x 68（W）x 30.5（D）mm |
| Weight | E410 204g, E410P 228g |
| Ambient environment |
Temp.: -20~55℃ Humidity: <95%RH Pressure: 90kPa~110kPa |
