BX171 is a disposable intrinsically safe type portable single gas detector which can monitor the concentration of O2, CO, H2S. Send alarms when exceeding gas concentration is detected, protesting the workers from danger caused by O2 deficiency, toxicity of H2S and CO.

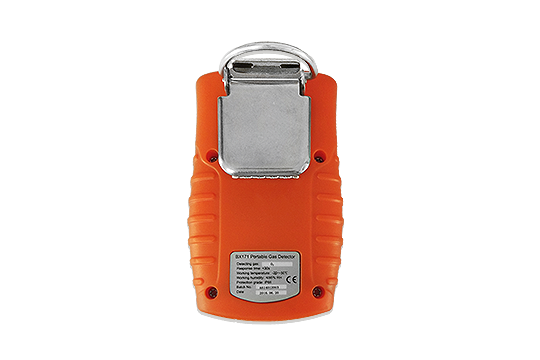

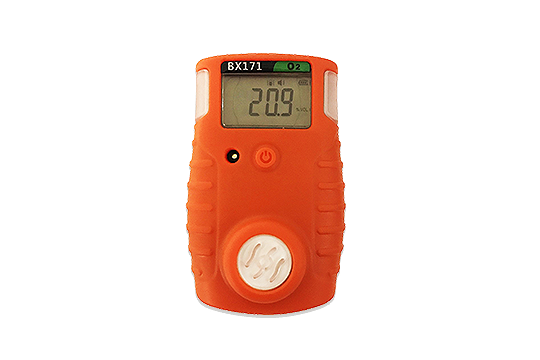

BX171 Portable Single Gas Detector (disposable)
Description
Features
Intrinsically safe
Explosion-proof design, ATEX approved
Water and dust proof
Compact and light weight
Operates for 2 years
Visual, audible and vibration alarm
Optional function of IR upload
Application
Oil and gas industries, Power plants, Petrochemical plant, Steelworks, Refinery, Marine, Mine, Sewage treatment plant, Confined spaces, Labs etc.
Specifications
| Measuring gas | O2, CO, H2S |
| Measuring range | Please refer to our gas list |
| Sensor type | Electrochemical sensor |
| Sensor life | 2 years |
| Measuring type | Diffuse naturally |
| Response time | T90<30s |
| Alarm method | Visual, audible and vibrative signals |
| Audible | ≥80dB at 1m |
| Battery | DC3V CR123A Lithium battery |
| Event log | 1000 events |
| Working temperature | -20℃～55℃ |
| Working humidity | <95%RH (no condensation) |
| Housing | Rubber enclosure |
| Dimension | 91mm*58mm*34mm |
| Weight | About 130g |
| Ingress protection | IP66 |
| Ex grade | Ex ia IIC T4 Ga |
