BX176 portable single gas detector is an intrinsically safe equipment which can continuously detect combustible gases and toxic gases in underground pipes or mines. By adopting excellent-quality sensor, it has good sensitivity and repeatability.

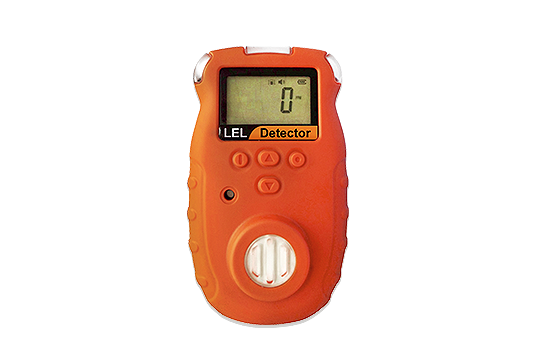

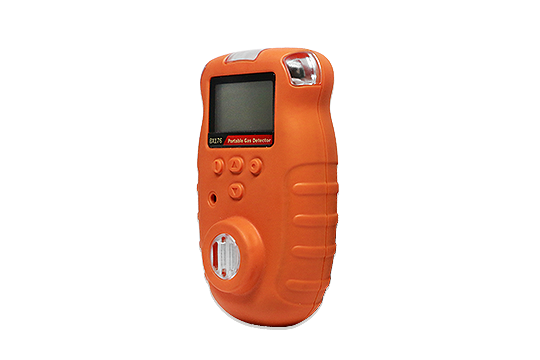

BX176 Portable Single Gas Detector
Description
Features
LCD display
Adjustable alarm value and span calibration value
High concentration protection for combustible gas sensor
Low voltage alert
Real time clock display
Audible, visual and vibrative alarming
STEL and TWA alarm for toxic gases
Application
Oil and gas industries, Power plants, Petrochemical plant, Steelworks, Refinery, Marine, Mine, Sewage treatment plant, Confined spaces, Labs etc.
Specifications
| Target gas | LEL, O2, toxic gases etc | |||
| Accuracy | ≤±5% F.S. | |||
| Response time |
LEL, CO, H2S: T90 <30s (LEL, CO, H2S) O2: T90 <20s (Oxygen) NH3, HCL: T90 <120s (NH3, HCL) Other toxic: T90 <60s |
|||
| Alarm method | Audible, visual, and vibration alarm | |||
| Indication | LCD indicates the time and state | |||
| Working temperature |
Combustible gas: -40℃～70℃ Toxic and O2: -20℃～50℃ |
|||
| Working humidity | <95%RH (no condensation) | |||
| Ingress protection | IP65 | |||
| Power supply | DC3.7V, 1300mAh Li-ion battery | |||
| Operating time | ≥8h | |||
| Charging time | 4～6 hours | |||
| Dimension and weight | 104.0×60.8×30.5mm about 125g | |||
