BZ100 is an intrinsically safe disposable gas detector that can continuously detect the concentration of CO, H2S or O2 in the ambient air. It’s the first mini portable gas detector in China with ultra-low-consumption, compact and lightweight design.

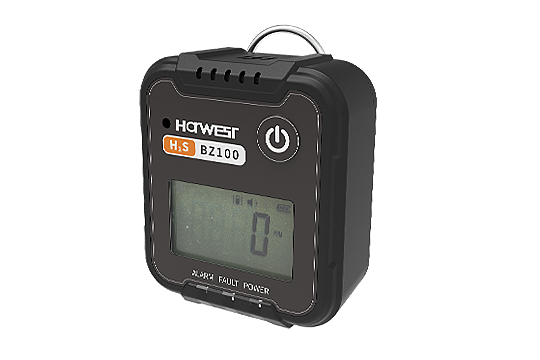

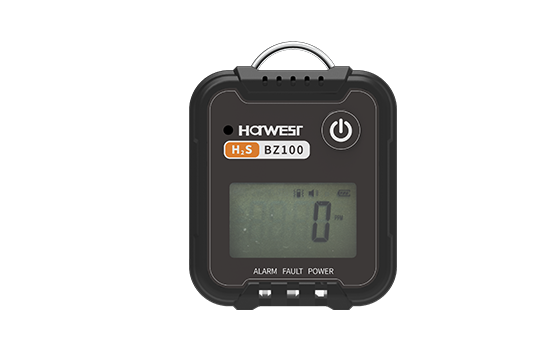

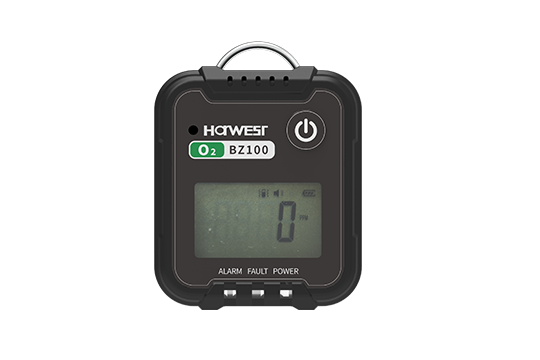

BZ100 Portable Gas Detector
Description
Features
The smallest detector from China (palm size)
2-year disposable gas detector
Low-consumption 16-bit MCU to ensure long battery life
Wide viewing-angle graphic LCD display
Configurable high and low alarm points, two levels of alarm
Battery low voltage alert
Automatic calibration to reduce detection error
Audible, visual, and vibrative alarming signals
Data upload function (Bluetooth)
STEL and TWA alarms for toxic gases
Automatic self-test function after power-on
ATEX and IECEx approved
Application
Petroleum, chemical industry, metallurgy, mines or underground pipelines, tunnels etc.
Specifications
| Detection method | Diffuse naturally |
| Sensor type | Electrochemical sensor |
| Display deviation |
CO: Absolute: ±5 ppm, Relative:±10% H2S: Absolute: ±2 ppm, Relative: ±10% O2: ±2%F.S. |
| Alarm signal | Audible, visual, and vibrative |
| Alarm sound | 90dB @10cm |
| Communication method | Wireless (infrared communication with host computer) |
| Featured functions: | Parameter setting, log storage and export functions |
| Indication method |
LCD screen: show real-time data and system status. Backlight: illuminates on command or alarm status in low light. |
| Ambient condition |
Temperature: -20℃～50℃ Humidity: ＜95%RH (no condensation) Pressure: 90-110Kpa |
| Power source | Lithium battery DC3.6V, 1200mAh |
| Sensor lifespan | 2 years (2 minutes of alarm per day) |
| Ingress protection | ≥IP66 |
| Approval |
ATEX II 1G Ex iaⅡC T4 Ga IECEx Ex ia IIC T4 Ga |
| Explosion-proof type | Intrinsically safe |
| Dimension | 61.5*52.8*27mm |
| Weight | About 85g |
